Access Keypads

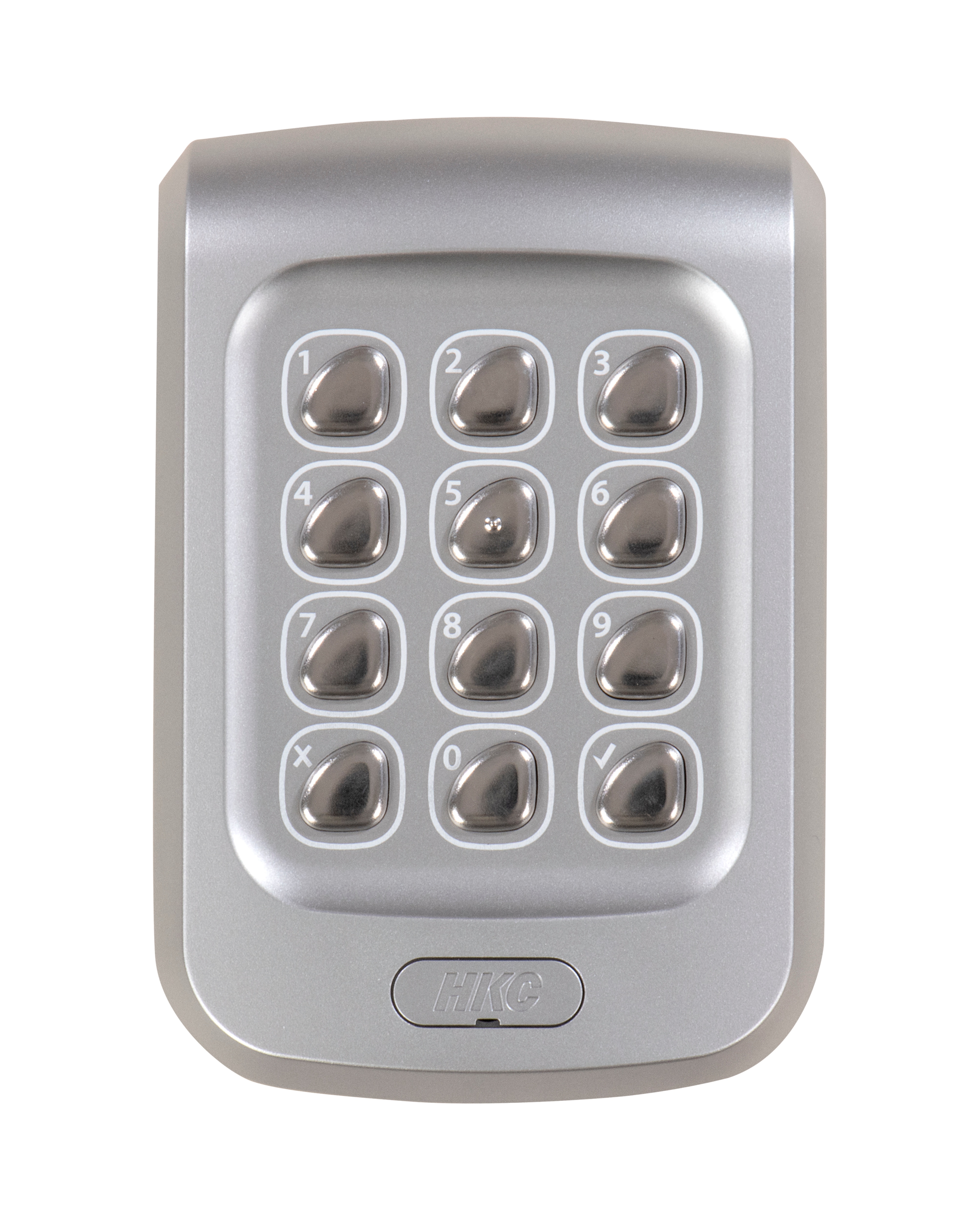

A sleek, hard-wearing access control unit to secure your premises and control entry. With programmable entry codes, this product gives you the power to create up to 1,000 unique entry codes to suit your needs. High-powered LED lights mounted on the side of the unit illuminate the immediate vicinity, while the backlight behind the keys can be customised to display a range of different colours.An IP67 rating ensures it is all-weather proof come rain hail or shine. The unit is also locally configurable through SmarkLink700.
Input Power: 12V to 24V AC or DC Current Consumption: 90mA quiescent (default) or 20mA quiescent (no backlight) 250mA active (default) or 550mA active (max. brightness back & side lights) Relay contact capacity: 5A/50VAC Max. number of users: 1,000 Proximity version available: AKP-7 Size: 124mm x 87mm x 31mm Weight: 225g IP Rating: 67 Temperature: -25 to +60°C

A slim version of the AK-7, this is a sleek, hard-wearing access control unit to secure your premises and control entry. With programmable entry codes, this product gives you the power to create up to 1,000 unique entry codes to suit your needs. High-powered LED lights mounted on the side of the unit illuminate the immediate vicinity, while the backlight behind the keys can be customised to display a range of different colours. An IP67 rating ensures it is all-weather proof come rain hail or shine. The unit is also locally configurable through SmartLink700.
Input Power: 12V to 24V AC or DC Current Consumption: 90mA quiescent (default) or 20mA quiescent (no backlight) 250mA active (default) or 550mA active (max. brightness back & side lights) Relay contact capacity: 5A/50VAC Max. number of users: 1,000 Proximity version available: AKPS-7 Size: 152mm x 60mm x 31mm Weight: 200g IP Rating: 67 Temperature: -25 to +60°C

A secure and sleek wireless access control unit designed to protect and control access to both residential and commercial properties. With programmable entry codes, this product allows up to 250 unique entry codes to suit all applications. Proximity version available.Using HKC's SecureWave wireless technology the keypad can be integrated with our SW-10270 panel and can also work in standalone mode with our wireless relay box (RF-RBX).The RF Access keypad is locally configurable through SmartLink700. It is IP67 rated to ensure it is weather proof.
Standalone Option with wireless output relay box (RF-RBX) More secure - no cables to short out Easy to programme - Configurable via SL700 Use as a replacement for old keypads with cable damage Use for Alarm Exit/Entry confirmation Input Power: 2 Duracell DL123A batteries Current Consumption: Standby: 7μA Transmit: 100mA (peak) Range: Line of sight >400m Battery Life: Typically 3 years Max. number of users: 250 Proximity version available: RF-AK7P Size: 124mm x 87mm x 31mm Weight: 225g IP Rating: 67 Temperature: -25 to +60°C

A secure and sleek wireless access control unit designed to protect and control access to both residential and commercial properties. With programmable entry codes, this product allows up to 250 unique entry codes to suit all applications. Proximity version available.Using HKC's SecureWave wireless technology the keypad can be integrated with our SW-10270 panel and can also work in standalone mode with our wireless relay box (RF-RBX).The RF Access keypad is locally configurable through SmartLink700. It is IP67 rated to ensure it is weather proof.
Standalone Option with wireless output relay box (RF-RBX) More secure - no cables to short out Easy to programme - Configurable via SL700 Use as a replacement for old keypads with cable damage Use for Alarm Exit/Entry confirmation Input Power: 2 Duracell DL123A batteries Current Consumption: Standby: 7μA Transmit: 100mA (peak) Range: Line of sight >400m Battery Life: Typically 3 years Max. number of users: 250 RF-AK7P comes with proximity tag Size: 124mm x 87mm x 31mm Weight: 225g IP Rating: 67 Temperature: -25 to +60°C
